Home / Air Compressors / G9HGA-8P

9 HP Single Stage Wheeled Compressor – G9HGA-8P

16.2

CFM @ 100 PSI

15.6

CFM @ 125 PSI

Gas

9

122CC

9

Tank Size

Product description goes here High-performance compressor for industrial usage. Product description goes here High-performance compressor for industrial usage. Product description goes here High-performance compressor for industrial usage. Product description goes here High-performance compressor for industrial usage.

Heavy-duty single stage cast iron compressor pump Made in Somerset, PA USA Splash lubricated Belt driven with a large flywheel for extra cooling and easier start-up Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil Directional air shroud for reduced pump temperatures Totally enclosed heavy-duty beltguard 8 & 15 gallon tanks are low profile, powder coated twin tank receivers 17 and 30 gallon tanks are powder coated and ASME certified Convenient lifting handles Anti-vibration feet Pneumatic tire(s) Protectively mounted fittings Manual tank drain(s) Large canister intake filter with replaceable filter elements Special unloading valves to assist in engine starting Stainless steel braided discharge hose Tank gauge Regulator and outlet pressure gauge Pressure relief safety valve Designed, tested and proven to meet the demands of the construction and rental industry request Constant run control set at 105-125 PSI High quality pilot valve Pneumatic throttle idle control Honda GX Series OHV Engine

Specifications

Model Number

G9HGA-8P

Name

9 HP Single Stage Wheeled Compressor – G9HGA-8P

CFM @ 100 PSI

16.2

PSI

CFM @ 100 PSI

15.6

PSI

Power Source

Gas

Motor

Power HP

9

HP

Power CC

115

CC

Tank Gallons

9

Gallons

Pump Type

G

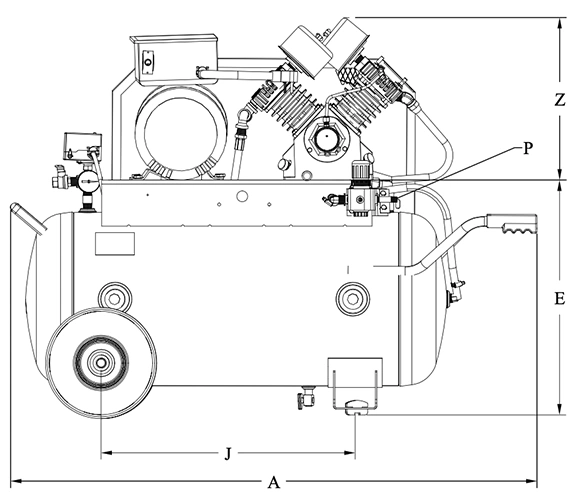

Dimensions

45" x 23" x 42"

Weight

270 lbs

Phase(s)

Voltage


Two wheel option (8 & 15 gallon models)|Oil sight glass|Air line filter|Lubricator|Electric start|Other engine options available upon request|Other pressures available upon request

Explore All

Model NumberProduct NameCFM 100 PSICFM 125 PSIPower SourcePower HPTank GallonsPump TypeDimensionsWeightPhaseVoltage
AC3003CCompact 300c3.53.2Electric1.510Single-stage piston20x15x1875 lbsSingle110V
AC3003BCompact 300b3.53.2Electric1.510Single-stage piston20x15x1875 lbsSingle110V
AC3003Compact 3003.53.2Electric1.510Single-stage piston20x15x1875 lbsSingle110V
G9HGA-8P9 HP Single Stage Wheeled Compressor – G9HGA-8P16.215.6Gas99G45" x 23" x 42"270 lbs
